Jogging Controls
Advanced Jogging Controls was added in version 2.0.0-RC1
The machine can be jogged via three possible inputs:
Clicking on the UI buttons with the mouse or touchscreen.
Using the keyboard arrow buttons, and Pg Up/Down
Advanced Jogging Options

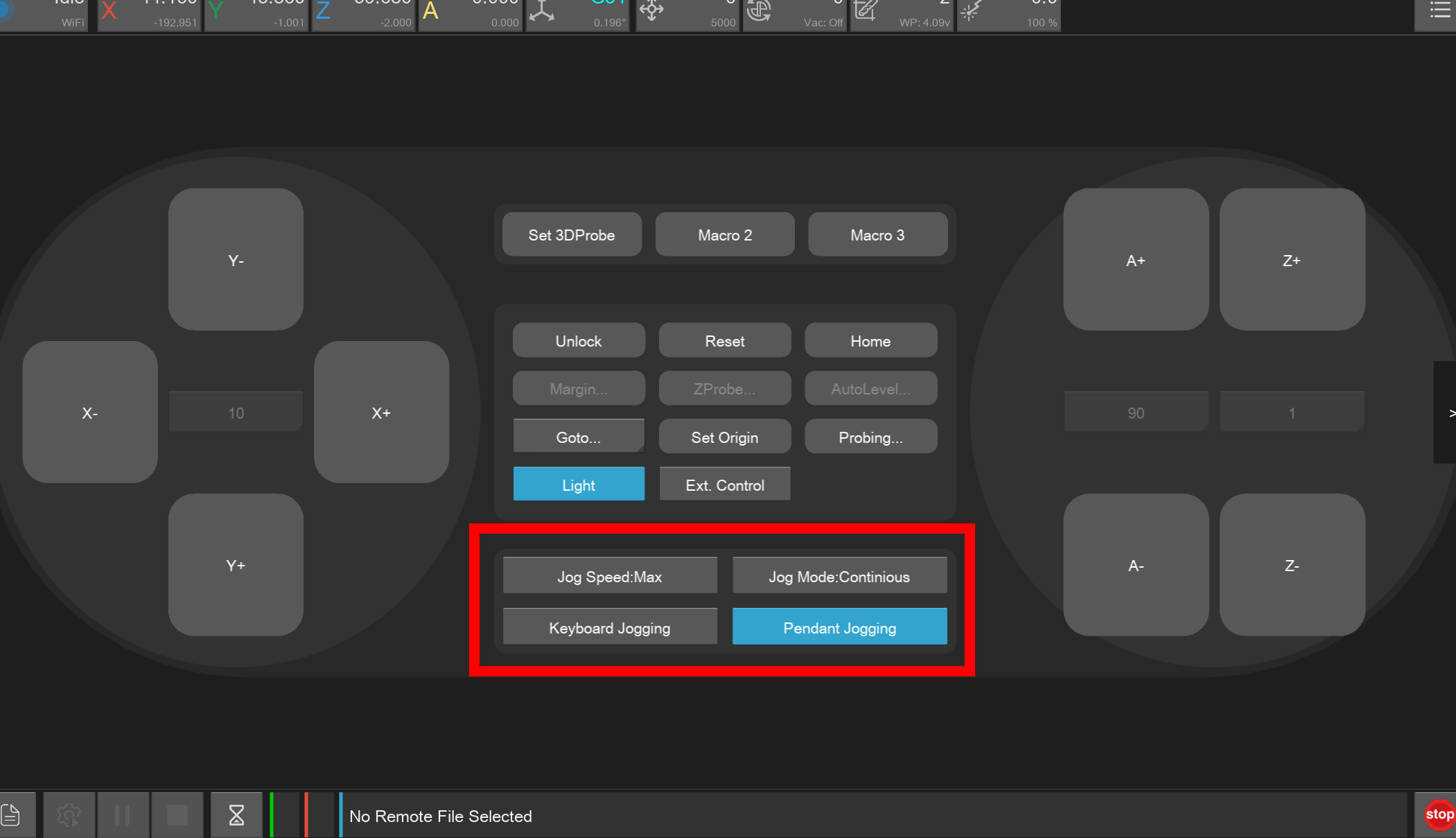

The Control screen has a number of additional Jogging related options:
Speed: Default to Max
Mode: Step or Continuous
Keyboard Jogging: Enabled (blue button background) or Disabled (grey)
Pendant Jogging: If a Pendant is configured whether moving it's jog wheel will move the machine or not
Keyboard Jogging
If Keyboard Jogging is toggled on (blue button background) the following keys can be used to move the spindle:
Arrow keys move X/Y
Pg Up - Increase the Z
Pg Down - Decrease the Z
Continuous Jogging
When the machine is running a supported firmware (>2.0.0c) continuous jogging capability is possible. In this mode the machine will move at a constant speed (as specified by the Jog Speed option) in the direction of the button press while the button is held down. This applies to both the UI buttons and the Keyboard Input
